Rear Subframe Reinforcement BMW E36

The reinforcement in the mounting of the rear buggy of the BMW E36 has been designed by RS-Ultimate to precisely match the original fixings and grooves of the floor.

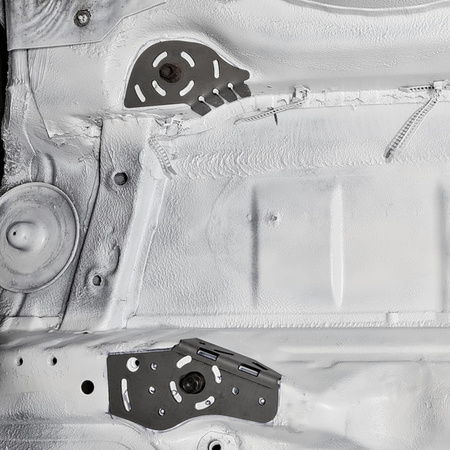

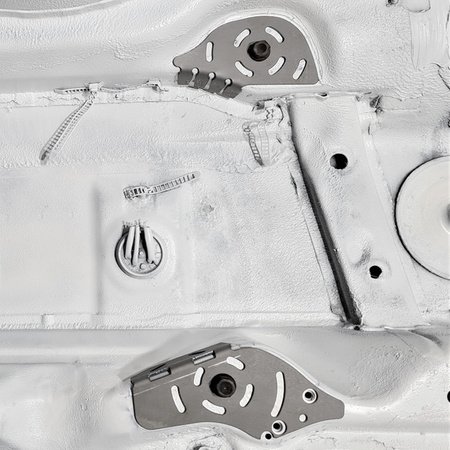

The stiffeners can be welded in without any additional alterations to the floor or the rear trolley. The reinforcement sheet set has additional folds that are bent on the left and right sides of the reinforcements to achieve the maximum possible reinforcement of the floor.

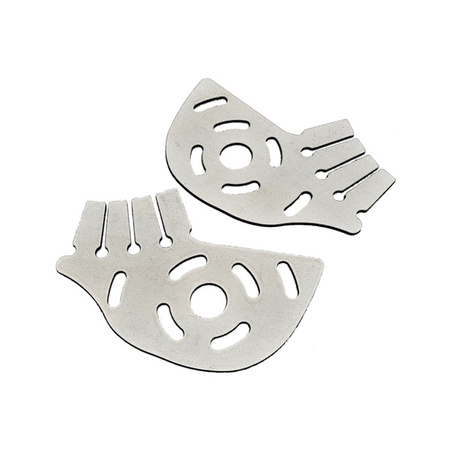

The stiffeners of the rear fasteners have 4 additional sheets of metal for "sticking" on the semicircular side of the original ribbing in the floor. After dabbing, the leaves fit perfectly into the semicircular plane of the embossing. Their unique shape creates gaps between the leaves that allow the stiffeners to be welded accurately to the floor.

The sheets have a large number of cutouts, most of which fall in the factory welds, where the floor strength is the highest.

The product is intended both for cars that, due to the passage of time, require repair or reconstruction of the original mounting, as well as for tuning purposes, to prevent their damage during intensive use during Drift, KJS, 1/4 mile competitions, etc.

S355 steel, 3 [mm] thick

raw steel

for welding

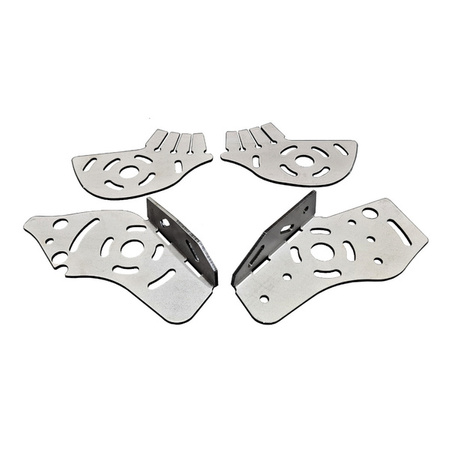

Set contains:

• left and right sides

Reinforcements for mounting the rear trolley dedicated to:

• BMW E36 Sedan
• BMW E36 Coupe
• BMW E36 Convertible
• BMW E36 Estate

The product is intended to strengthen the mounting of the BMW E36 rear stroller, which is very often damaged during sports driving. The reinforcements are designed to maximize the factory mount.
